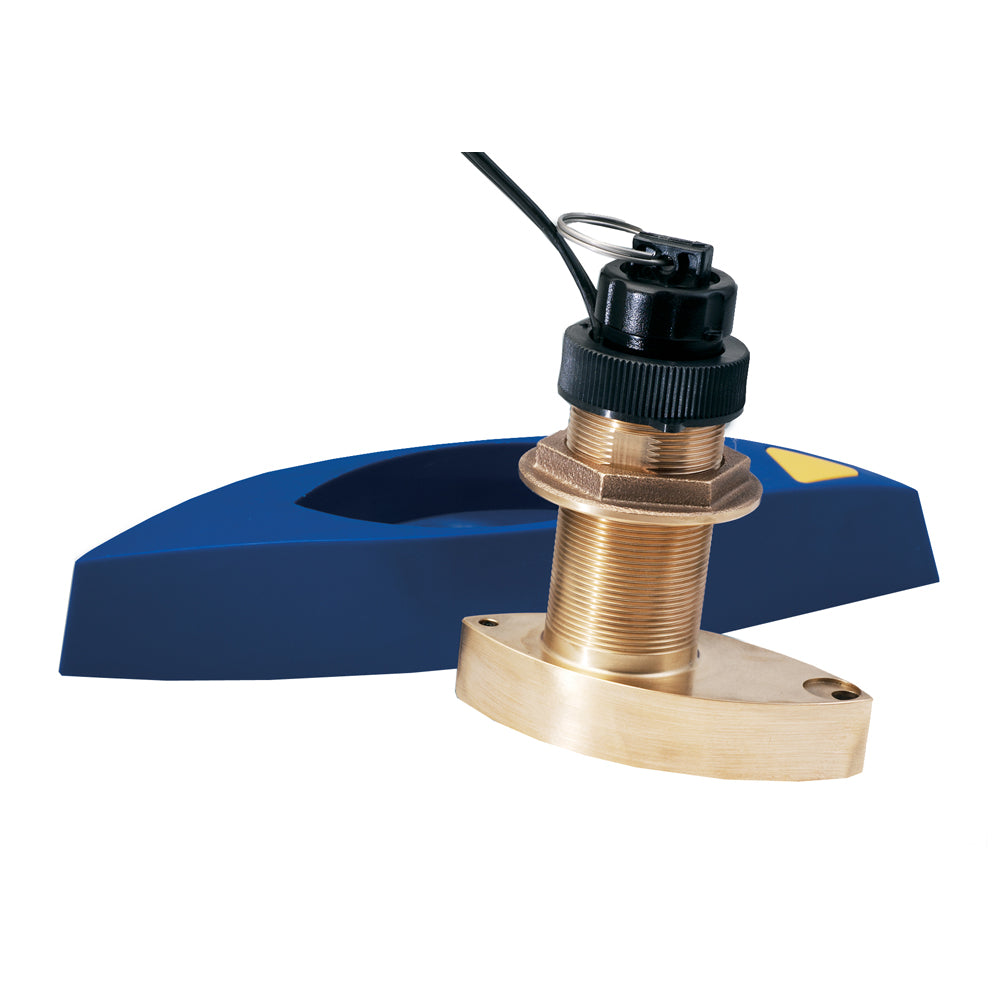

Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block [A66091]

B744V 600 Watt Bronze thru hull transducer with depth, speed, and temperature.

Compatible with the following sounder modules:

• DSM30

• DSM300


Compatible hull material: Wood and fiberglass

Max power: 600 W

Frequency: 200/50 kHz

Cable: 30ft (10m) cable with connector

Hole diameter for installation: 2"

Other: Self-sealing removable paddle wheel insert.

Includes high speed fairing block.

Specifications:

• Temperature: Yes
• Speed Included: Yes
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 4"H x 12"W x 16"L WT: 7.65 lbs
• UPC: 801769004366
