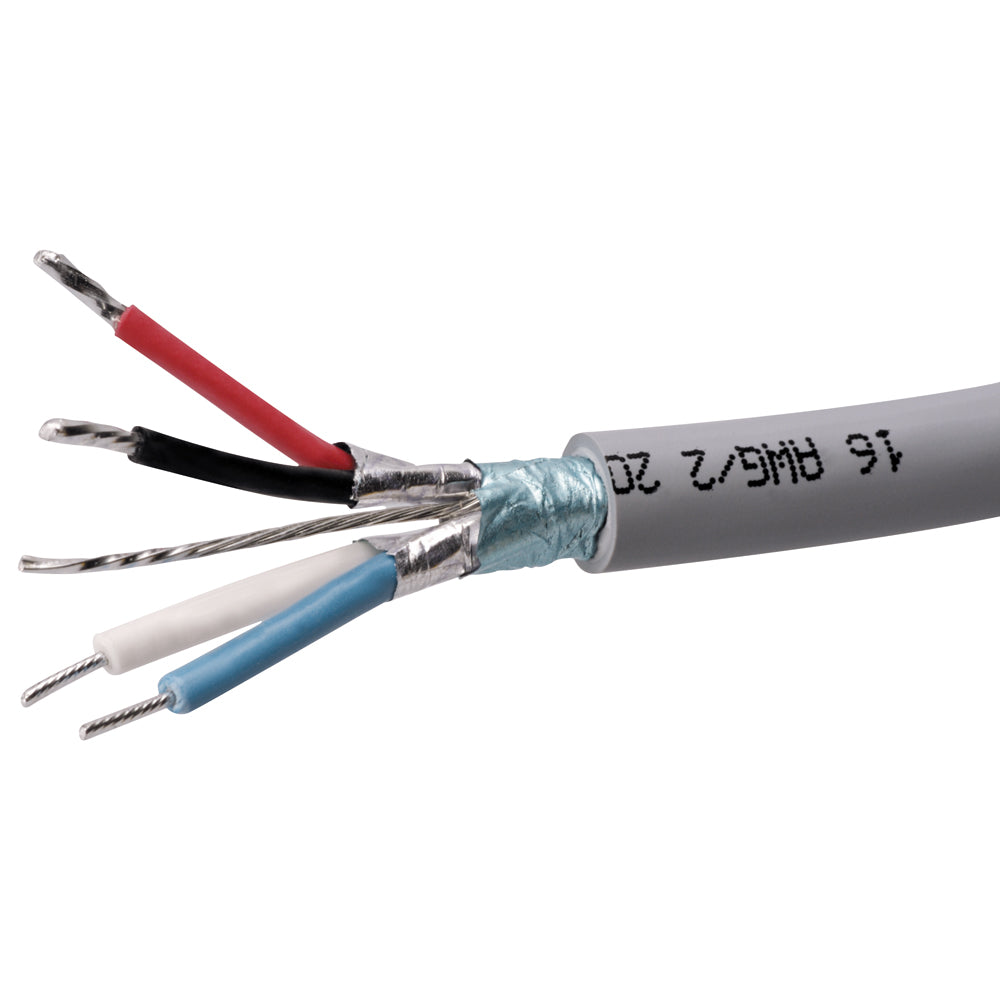

Maretron Mini Bulk Cable - 100 Meter - Gray [NG1-100C]

Maretron Mini Bulk Cable - 100 Meter - Gray [NG1-100C]

$795.00 USD
$0.00 USD $795.00 USD
Sale Sold out
Shipping calculated at checkout.

Maretron Mini Bulk Cable - 100 Meter - Gray

Specifications

Overall

  • Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1
  • Insulation Material: PE (data), PVC (power)
  • Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x15 (1.45mm) AWG
  • Resistance/Conductor: 3.44 Ohms/1000 ft max
  • Max Amperage: 16 Amps - NB1, 14 Amps - NG1
  • Color Code: Red/Black

    Data Pair

  • Wire: 2x18 (1.02mm) AWG
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 12 pF/1000 ft Max
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 APPROVED
  • IEC: IEC-61162-3

    Specifications:

    • Data Interface: NMEA 2000
    • Cable Length (Meters): 100m
    • Box Dimensions: 12"H x 12"W x 12"L WT: 35 lbs
    • UPC: 873804003054
