JOHNSON EVINRUDE RED RHINO ROD BOLTS, BEARINGS and CRANK SEALS

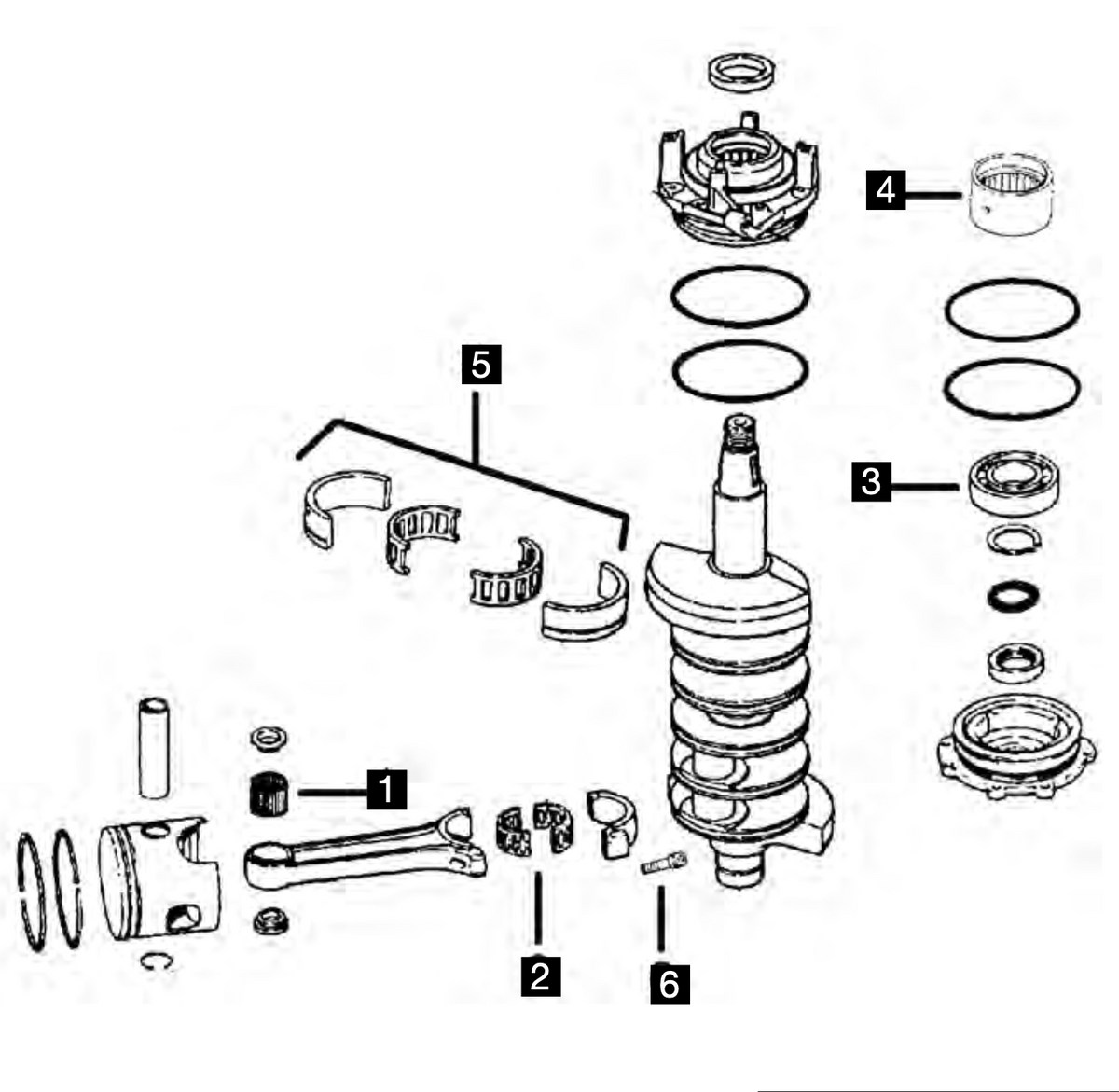

Replacement BEARING New from Red Rhino for rebuilds. These are high quality materials. Priced individually refer to the diagram for parts and part numbers.
V4 LOOPER 120-145 hp 1985-2001
DIAGRAM #
PART #
BEARING #
OEM#
1.
JE-1B24
WRIST PIN BEARINGS FITS 90° LOOPER
434844
2.
JE-1B30

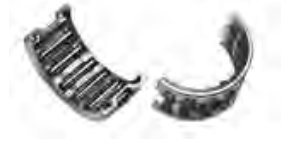

ROD BEARINGS 1986-2001
396041
3.
B6308

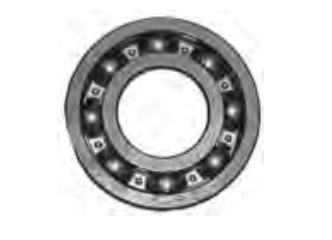

LOWER CRANK BEARING
390641
4.
JE-B495
UPPER CRANK BEARING
385822
5.
JE-B41

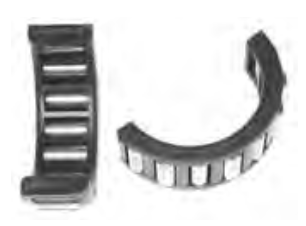

CENTER MAIN BEARING WITHOUT SLEEVE
387041
5.
JE-B050

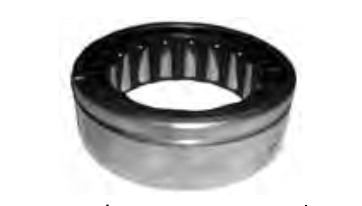

CENTER MAIN BEARING W/SLEEVE
320499
6.
JE-RB81
ROD BOLTS
330081
JE-252

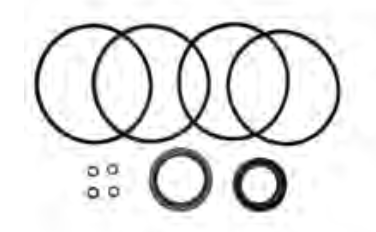

SEAL KIT
Important:In order to assist you in selecting the correct Piston Rebuild kit please provide the serial number and model number on the transom bracket of the motor. If you have questions please email us at: jhawknz@gmail.com or call: 615-691-1433. We would be happy to assist you with your purchase.
Item ships directly from the manufacturer for fast shipping
Thanks for shopping with us!
