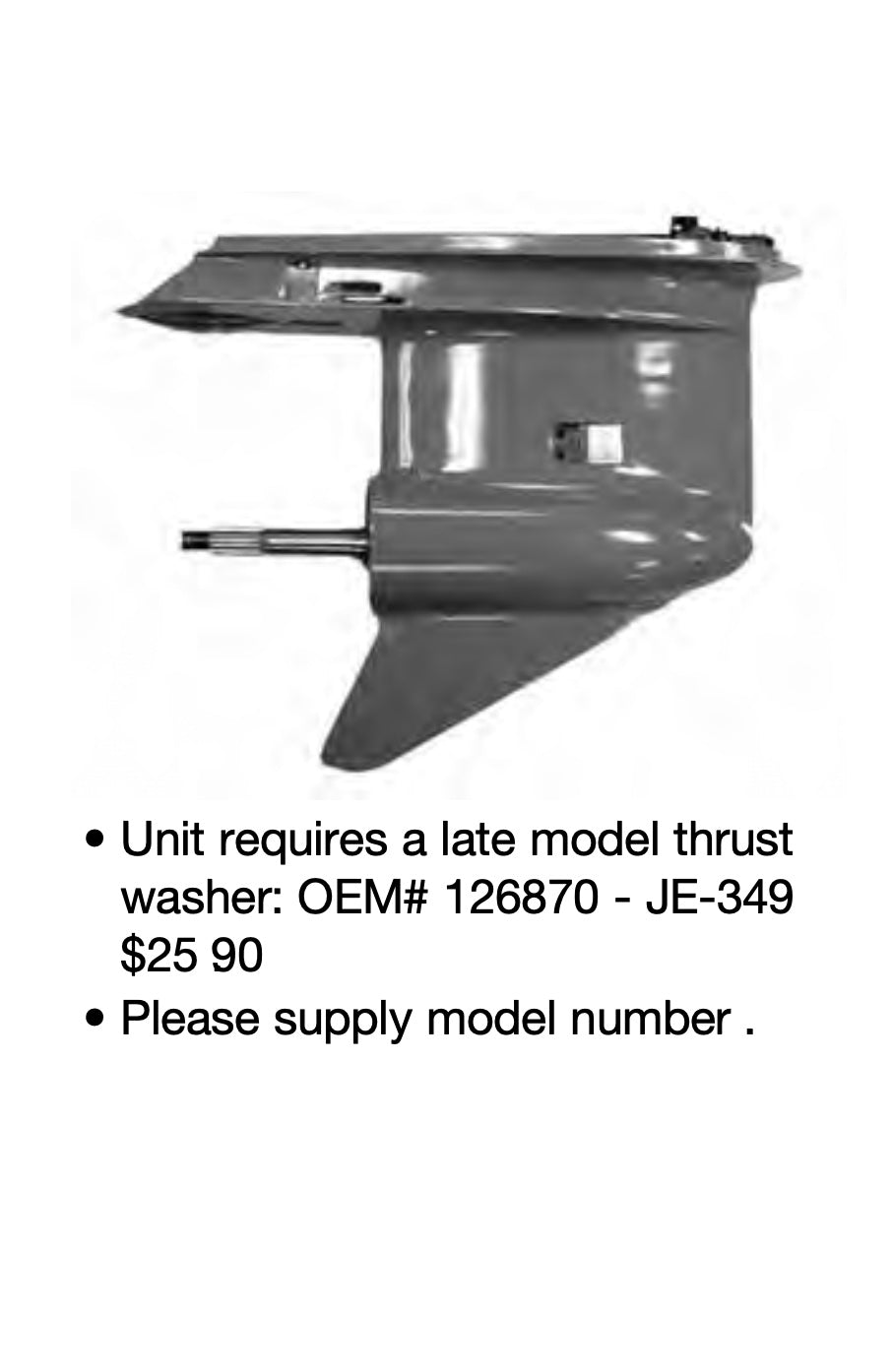

Johnson Evinrude 150-250HP ETEC O-TYPE V6 gearcase years 1979-2019
Johnson Evinrude 150-250HP ETEC O-TYPE V6 gearcase years 1979-2019
Couldn't load pickup availability
Johnson Evinrude 150-250/150-250HP ETEC O-TYPE V6 gearcase years 1979-2019
These gearcases are new outboard lower units with warranty. Call, message or email for availablity.
Please supply model number. Ask for specific ratios and specs. 186:1
* FOR 1979-91 MODELS: *
REPLACEMENT TOP DRIVE SHAFT
*PRICING VALID ONLY WITH PURCHASE OF JOHNSON-EVINRUDE V4/V6 GEARCASE

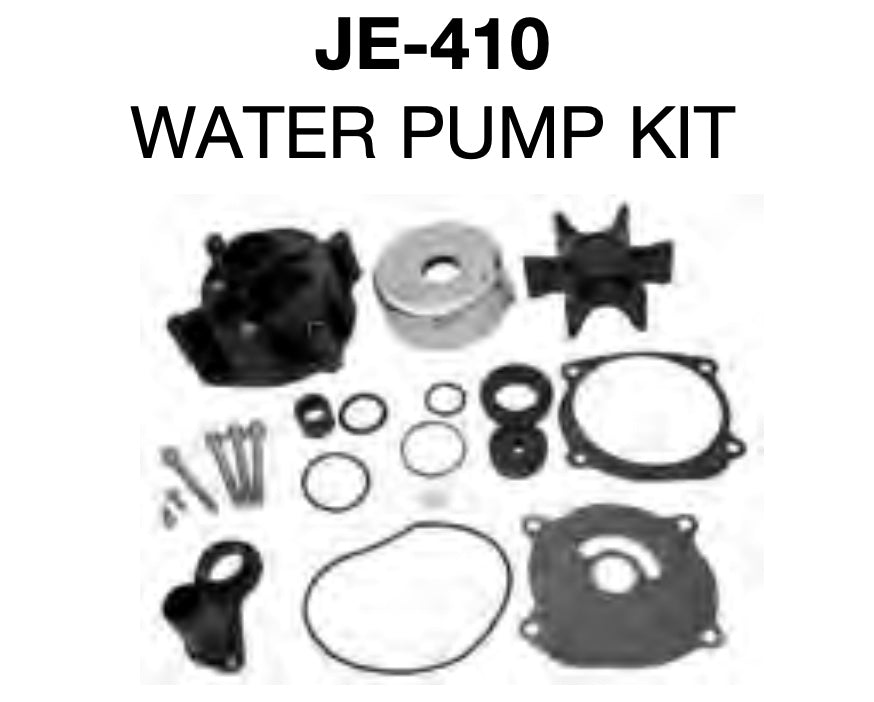

Price include Drive Shaft (and reuse shift rod) and water pump. Drive shaft snaps in place, water pump does not come pre-installed. Install water pump and add oil.

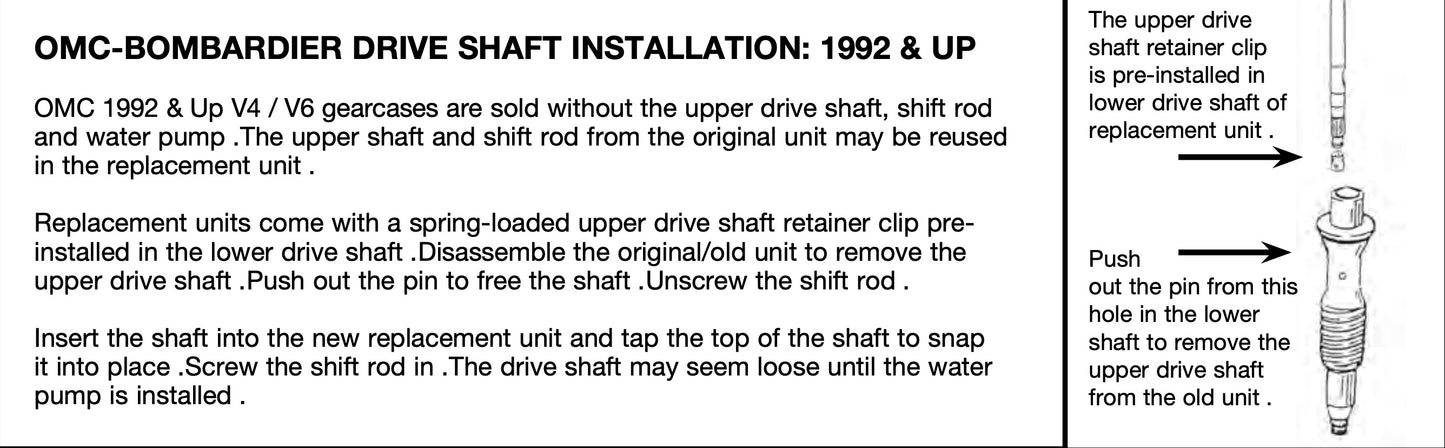

NOTE: 1992 AND NEWER OMC GEARCASES HAVE SNAP-IN TOP DRIVE SHAFTS
Please note: Normally not stocked in store and ships directly from the manufacturer.
Important: In order to assist you in selecting the correct powerhead, or gearcase please provide the serial number and model number on the transom bracket of the motor. If you have questions please email us at: jhawknz@gmail.com or call: 615-691-1433. We would be happy to assist you with your purchase.
NOTE: OMC V-4 GEARCASES HAVE EITHER A SMALL OR A LARGE HOUSING.
• Small Housing: • Large Housing:
V4 HOUSING SIZE
Propeller shaft hub is 3-5/8" in diameter . Propeller shaft has 13 splines .
Propeller shaft hub is 4-5/8" in diameter . Propeller shaft has 15 splines .
V4 gearcases could be “small hub” with 3-3/4" diameter prop hub and 13 splines on the prop shaft or could be “large hub” with 4-3/4" diameter prop hub and 15 splines on the prop shaft .
20" 1991-BACK V4/V6 CROSSFLOW/LOOPER 25" 1991-BACK V4/V6 CROSSFLOW/LOOPER 20" 1991-UP V4/V6 60°
25" 1991-UP V4/V6 60° 20"1992-UPV4/V6LOOPER/CROSSFLOW 25"1992-UPV4/V6LOOPER/CROSSFLOW $100
