Do You Really Need a Stator and Regulator? A Reader's Wiring Question, Answered

A boat owner recently wrote in with a question we hear a lot, usually right after someone notices something they shouldn't: wires running hot between the stator and the regulator on their Mercury 50hp.

Their reasoning was solid on the surface. Their old 40hp two-stroke never had a stator at all. Their charging output is small — under an amp — split across two batteries wired in parallel. And their usage pattern doesn't lean on the outboard much: run it to get to the spot, kill it, spend hours on the trolling motor, then run it again to move. So the question was fair: is a stator and regulator even mandatory, or is this a $500 fix for a problem that doesn't matter?

Here's where it's worth slowing down, because a couple of things in that reasoning — and in how people usually explain it — get mixed up.

"Stator" doesn't always mean one thing

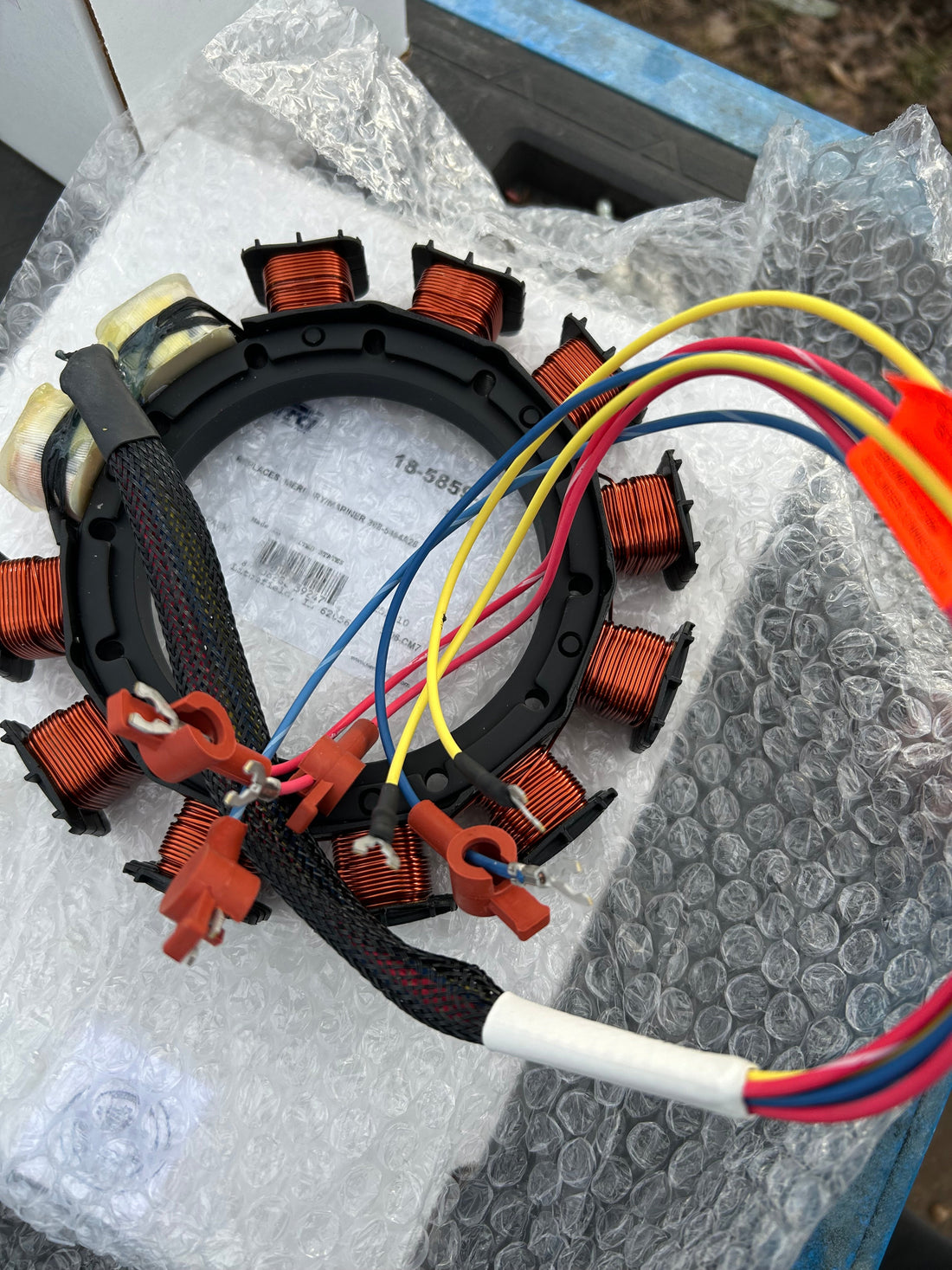

Every manufacturer names this part differently. Yamaha calls it a stator. Mercury often calls it a charge coil. Honda calls it a lighting coil. Underneath the label, they're all doing the same basic job: a ring of magnets on the flywheel spins past fixed coils and induces AC current.

The confusion starts because a single "stator" assembly can actually contain two separate jobs:

• Ignition charge coils — feed voltage to the CDI/power pack to fire the spark. On many two-stroke outboards, the engine genuinely will not run without these.
• Charging (lighting) windings — a separate set of windings that feeds the rectifier/regulator to charge the battery. Not every motor has these.

That's almost certainly the real explanation for why the old 40hp didn't have a stator issue and the 50hp does. It's not that one engine "needs" a stator and the other doesn't — it's that the smaller motor likely wasn't set up for battery charging (no electric start, minimal accessories), so it never got charging windings in the first place. The 50hp, with electric start, was built with them.

The rectifier and regulator aren't the battery

One common shortcut people take is saying "the battery is the regulator." It isn't. The battery stores energy; it doesn't regulate anything. The rectifier and regulator are two jobs, often combined into one small unit:

• The rectifier converts the stator's raw AC output into DC the battery can actually use.
• The regulator limits how much voltage reaches the battery, so a fully charged battery doesn't get cooked by continued charging current.

So why do the wires get hot?

This part of the original reasoning was closer to correct than it might sound. Many outboard charging systems use a shunt-type regulator. Once the battery is topped off, instead of shutting the stator down, the regulator shorts the excess AC output to ground. That dumped energy doesn't disappear — it turns into heat, right in the stator windings and the regulator itself. Some heat under load is normal and by design.

Heat that's noticeably hot to the touch, though, isn't something to explain away. That's usually one of a few things: wiring that's undersized or aging and adding resistance, a partially failed rectifier/regulator no longer shunting cleanly, or a stator winding starting to break down. Repeated heating and cooling cycles are also hard on a stator over time — it stresses the winding insulation and, on older designs, the glue holding the flywheel magnets in place. Later designs bolt or cage the magnets in for exactly this reason, since a magnet that lets go inside a spinning flywheel is its own problem.

So is it mandatory?

It depends on which part of the "stator" is actually in question. If the ignition system's charge coils are healthy and only the battery-charging windings are the issue, the boat will likely still run fine without fixing anything — you'd just lose the ability to recharge the battery from the outboard. Given a usage pattern that leans on a trolling motor for hours and only runs the outboard in short bursts, that charging output was probably never doing much heavy lifting anyway.

But that's a separate question from whether the hot wires should be ignored. They shouldn't be. Heat in a wiring harness is a fire risk regardless of whether the function behind it feels essential. The fix doesn't have to be a full $500 stator-and-regulator replacement — sometimes it's a wiring or connection issue, sometimes it's just the regulator. But it's worth diagnosing properly (checking stator output, rectifier output, and the wiring itself) rather than deciding the whole system is optional and leaving the heat as-is.

The short version: the stator makes AC power, the rectifier turns it into DC, the regulator keeps the battery from overcharging, and hot wires almost always mean something in that chain is working harder than it should. Whether it's worth full replacement depends on what's actually failing — but the heat itself is always worth chasing down.
