TACO Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair [H25-0016]

TACO Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair [H25-0016]

$609.99 USD
$0.00 USD $609.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Need help with fitment? Email orders@hawkeyemarine.net with your engine make, model, year, and serial number so we can help you find the right part.

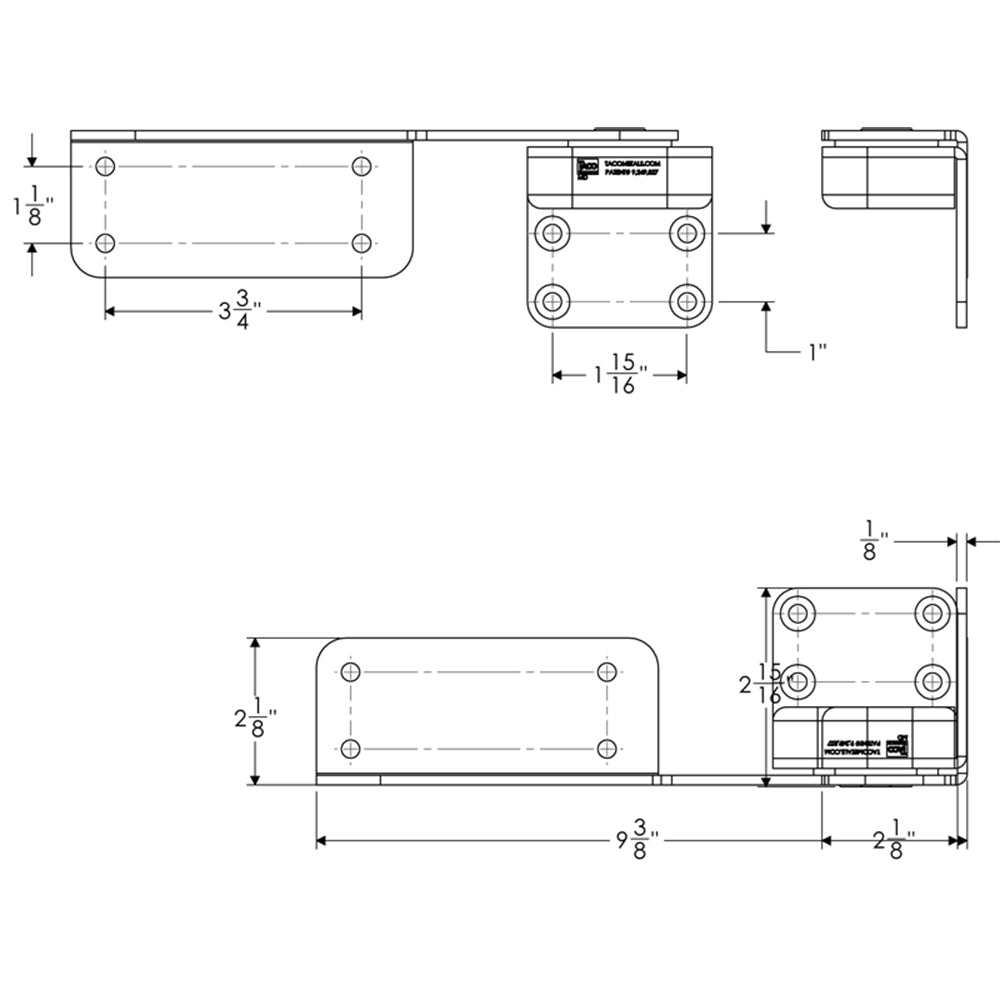

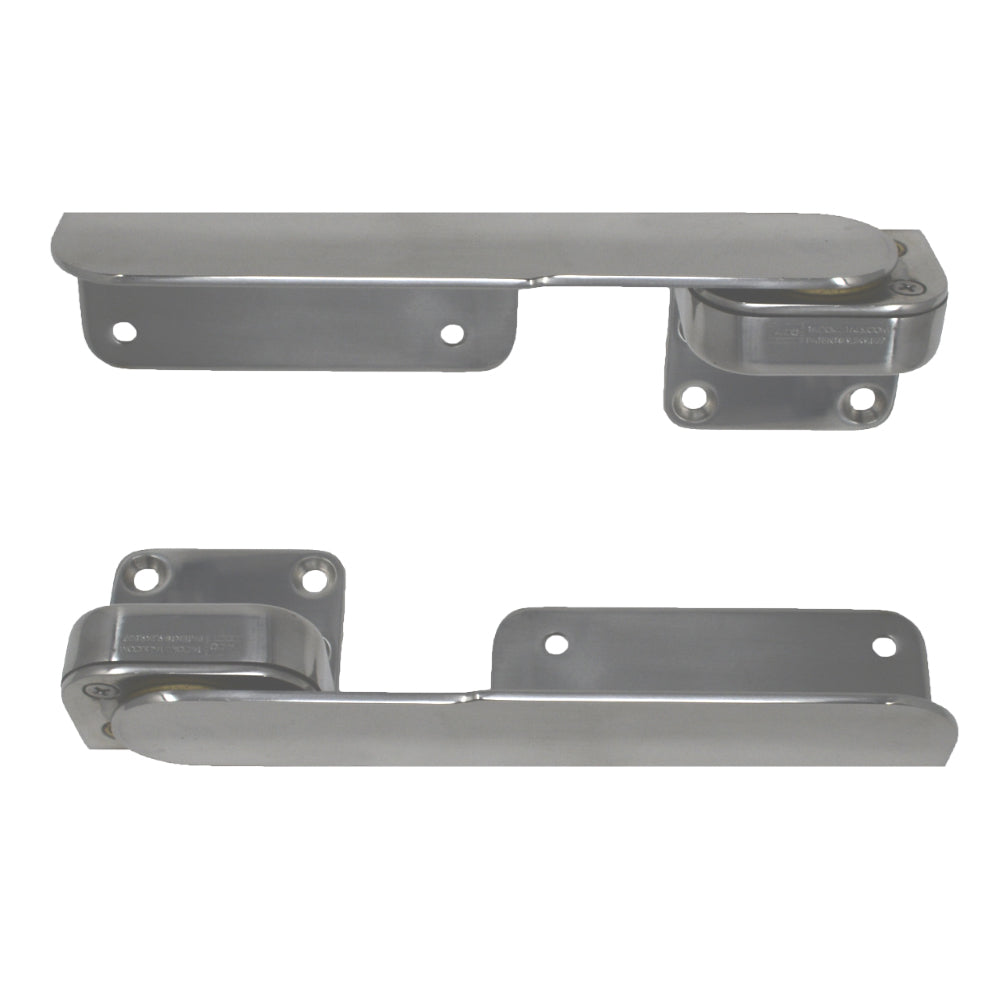

Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair

Constructed from high-grade stainless steel and brass, our Command Ratchet Hinge is ideal for sunpads, bolsters and lounge backrests. This heavy-duty specialty hinge has a 15-degree locking inclination and ratchets up to four positions.

Features:

  • Highly polished marine-grade stainless-steel Type-316L
  • All brass bearings for durability
  • Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair
  • 15-degree locking inclination increments starting at 30 degrees
  • Easily adaptable to many applications
  • Designed for up to 4" thick cushions
  • Returns to horizontal position at 100 degrees
  • Countersunk for #10 fastener or 1/4-20 bolt
  • Sold in pairs
  • 5-year limited warranty
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Brochure (pdf)
