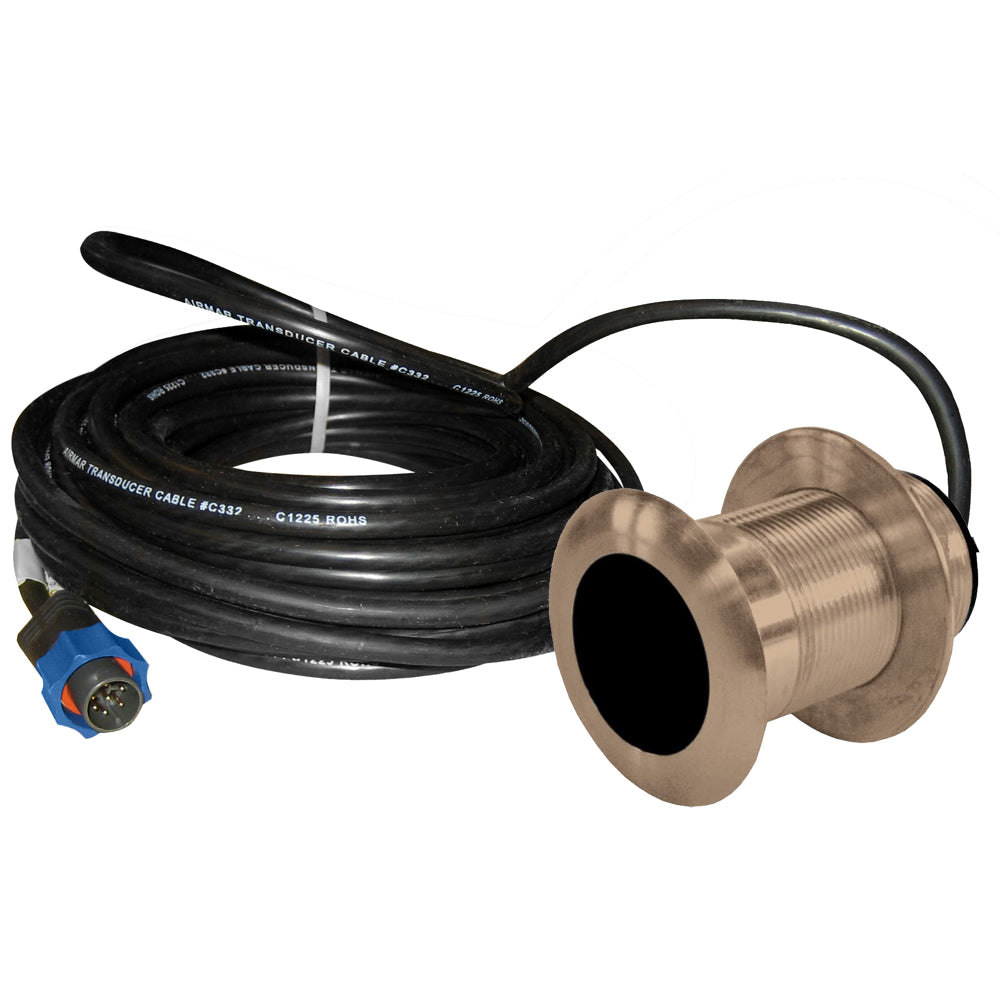

Lowrance B117 0 Degree 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W [B117-DT-BL]

B117 Bronze Thru-Hull Low-Profile 600 W Blue Connector

Applications

• Planing hull powerboats

• Sailboats

• Industry standard for low-profile transducers

• Depth and temperature

• Good target detail in shallow-water at 200kHz and good deep-water bottom tracking at 50kHz

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Bronze housing

• Boat Size: 8M (25') and up

Specifications:

• Speed Included: No
• Pins: 7
• Mounting Style: Thru-Hull
• Imaging: Standard
• Cable Length (Feet): 33'
• Temperature: Yes
• Chirp: No
• Box Dimensions: 4"H x 8"W x 10"L WT: 3.9 lbs
• UPC: 801769000498
