RAM® Double Ball Mount for Lowrance Hook 5 and Elite Ti5 + Ti7 More 1.5'' Ball Marine Electronic Mount RAM-101-LO11
RAM® Double Ball Mount for Lowrance Hook 5 and Elite Ti5 + Ti7 More 1.5'' Ball Marine Electronic Mount RAM-101-LO11
Regular price
$68.49
Regular price
Sale price
$68.49
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
RAM MOUNT QUICK RELEASE MOUNT F/LOWRANCE MARK & ELITE 5

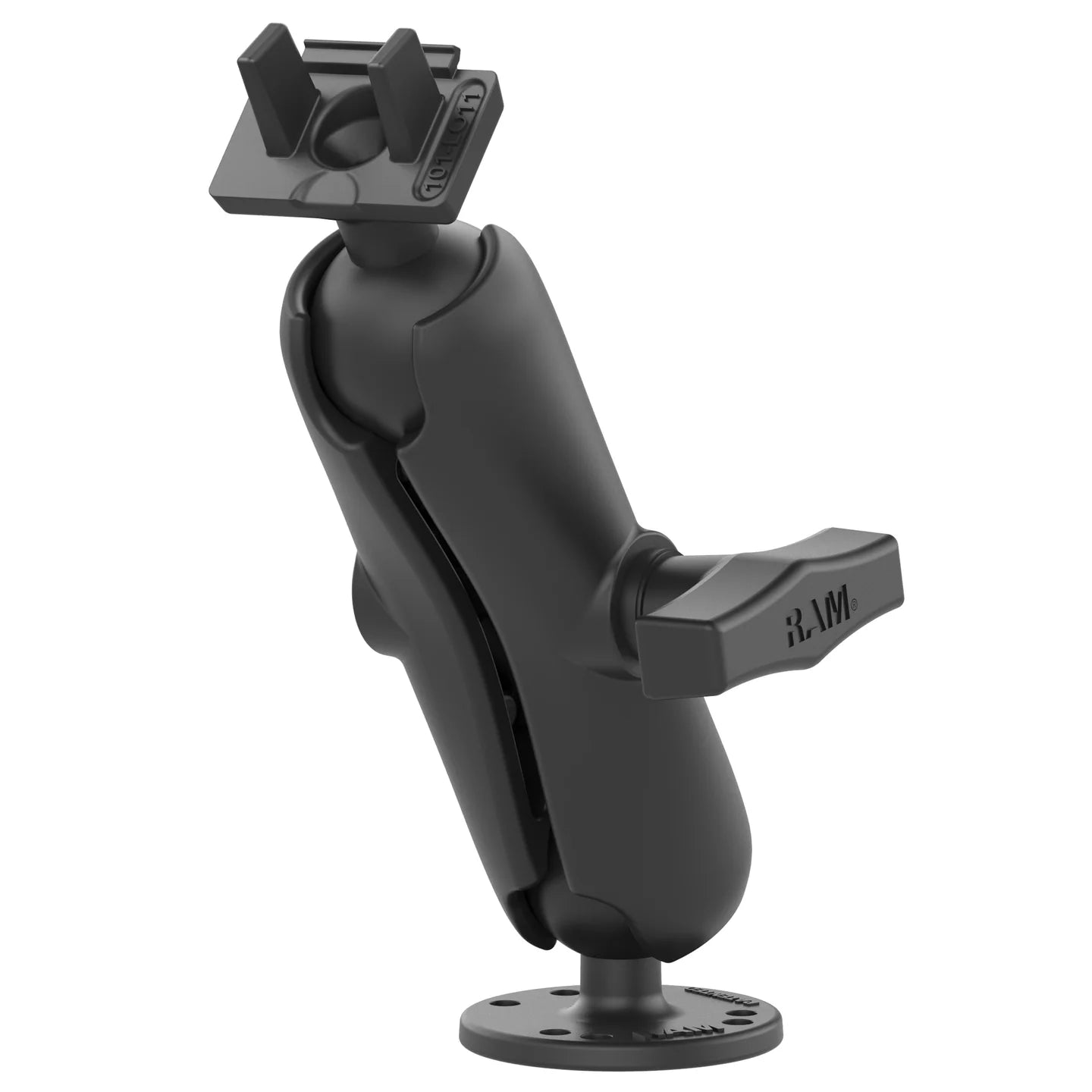

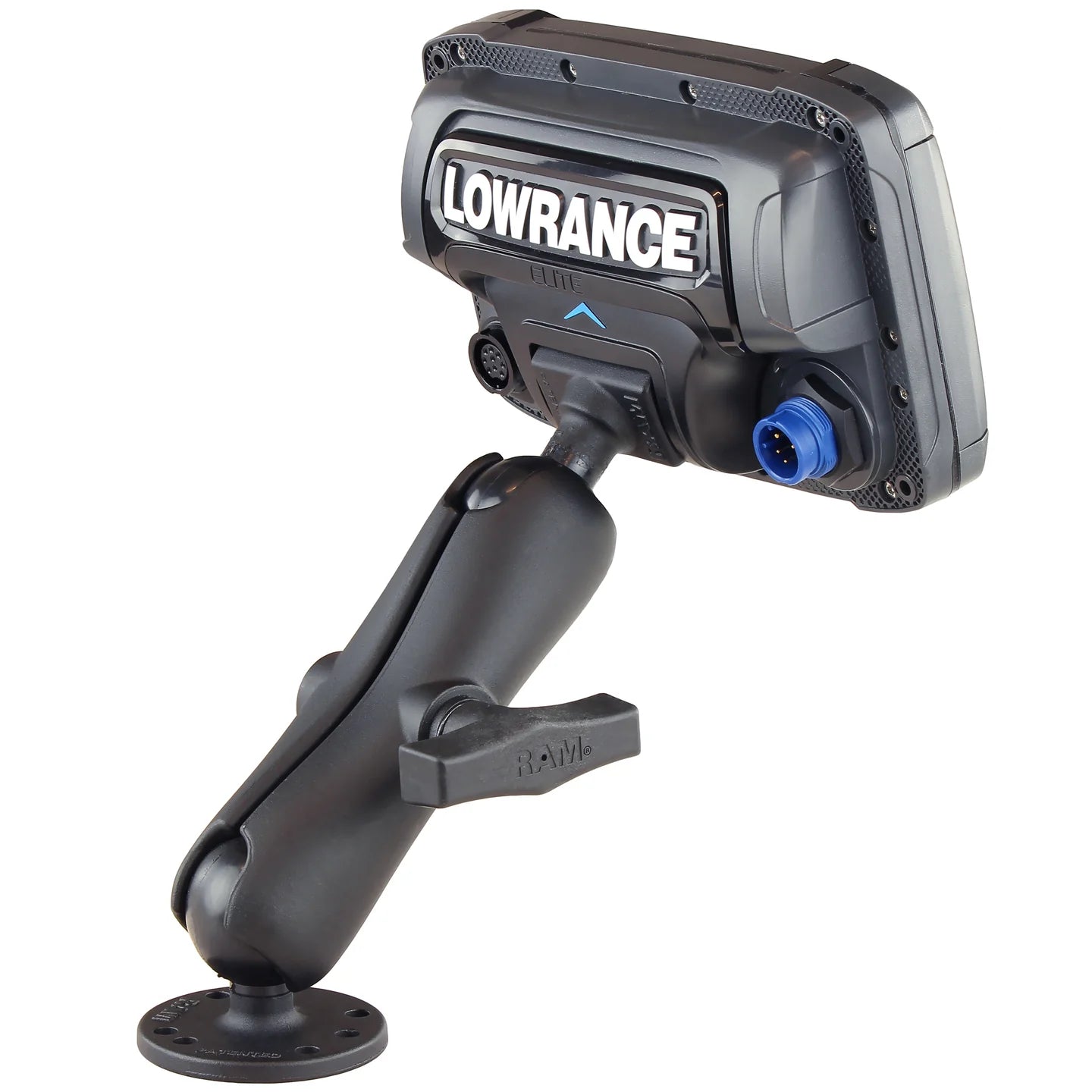

The RAM-101-LO11 consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 6 inch double socket arm and adapter base that inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET TO SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Box
WEIGHT
1.22 lb
ADDITIONAL INFORMATION
This product is not compatible with the standard Lowrance Elite-7.
This mount is compatible with the following electronic devices:
Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern
Ball Size:
1.5" Rubber Ball Size
Material:
Powder Coated Marine Grade Aluminum
Note:
Part number reflects product packaged in clear clam shell for store shelf display. RAM recommends this mount for "Rugged Use" mounting applications, including heavy weight Lowrance Elite and Mark Fishfinders.
Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern
Ball Size:
1.5" Rubber Ball Size
Material:
Powder Coated Marine Grade Aluminum
Note:
Part number reflects product packaged in clear clam shell for store shelf display. RAM recommends this mount for "Rugged Use" mounting applications, including heavy weight Lowrance Elite and Mark Fishfinders.
RAM 1.5" Ball Marine Electronic "Rugged Use" Mount f/the Lowrance Elite 5 Series
Part #: RAM-101-LO11
The RAM-101-LO11 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and adapter base that inserts directly to the back of Lowrance Elite 5 and Mark-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Part #: RAM-101-LO11
The RAM-101-LO11 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and adapter base that inserts directly to the back of Lowrance Elite 5 and Mark-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
