RAM® MOUNT HUMMINBIRD / LOWRANCE ELITE/MARK SERIES MOUNT F/ UNITS UNDER 10LBS.

RAM® MOUNT HUMMINBIRD / LOWRANCE ELITE/MARK SERIES MOUNT F/ UNITS UNDER 10LBS.

$71.49
$71.49
Sale Sold out
Shipping calculated at checkout.
For the Humminbird 100, 300, 500, 700 Series, Matrix Series and Lowrance Elite-5 Series

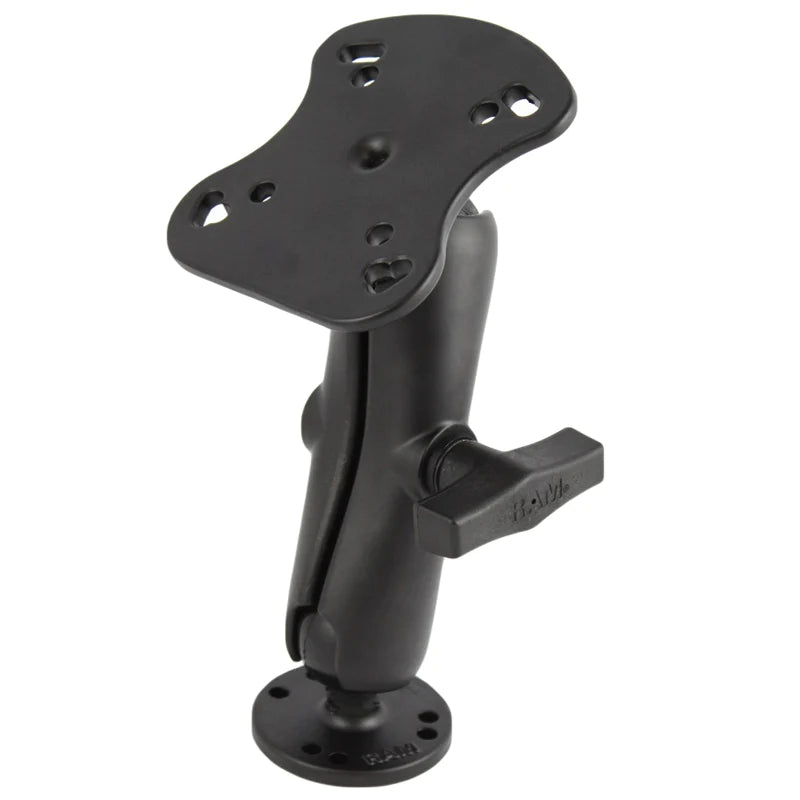

The RAM-107U consists of a double socket arm, one 2.5" diameter round base and connecting Humminbird/Apelco marine base. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.

This mount is compatible with the following electronic devices:
Humminbird 700 Series
Humminbird 500 Series
Humminbird 300 Series
Humminbird 100 Series
Humminbird Matrix Series (excluding Matrix 97)
Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern

Ball Size:
1.5" Rubber Ball Size

Material:
Powder Coated Marine Grade Aluminum


PRODUCT DIMENSIONS

Overall Height: 7.35"

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

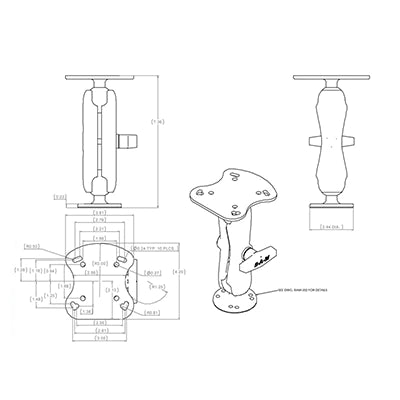

See Drawing

PLATE SIZE

Top Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.3 lb

Ram Mount - Humminbird - Lowrance Elite/Mark

The RAM-107U Humminbird and Apelco Series RAM mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment point at the cradle bases. With a twist of the arm knob, you can move the Humminbird and Apelco marine mount to your optimum viewing position.

The RAM-107 is compatible with the following marine fishfinder models:
Humminbird 700 Series
Humminbird 500 Series
Humminbird 300 Series
Humminbird 100 Series
Humminbird Matrix Series (excluding Matrix 97)
Lowrance Elite Series
Lowrance Mark Series

Material:
Powder Coated Marine Grade Aluminum

Ball Size
1.5" Rubber Ball Size
