Balmar SG-210 Battery Monitor System 12V-48 Volt Kit, w/Gateway

Balmar SG-210 Battery Monitor System 12V-48 Volt Kit, w/Gateway

Regular price $299.00
Regular price Sale price $299.00
Sale Sold out
Shipping calculated at checkout.

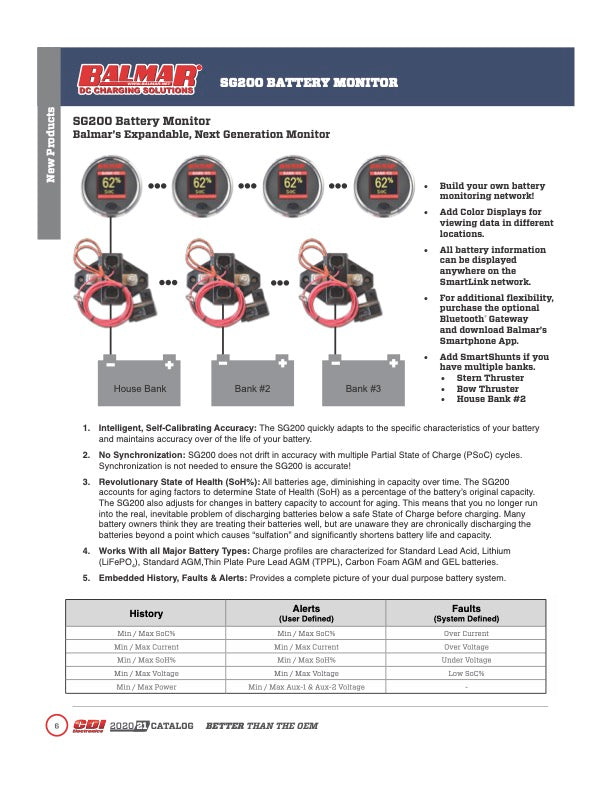

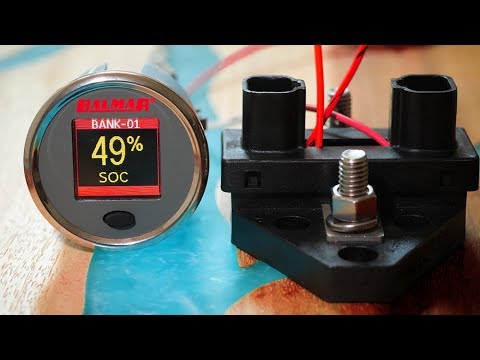

Balmar SG-210 Battery Monitor System 12V-48 Volt Kit, w/Gateway

Please note: Normally not stocked in store and ships directly from the manufacturer.

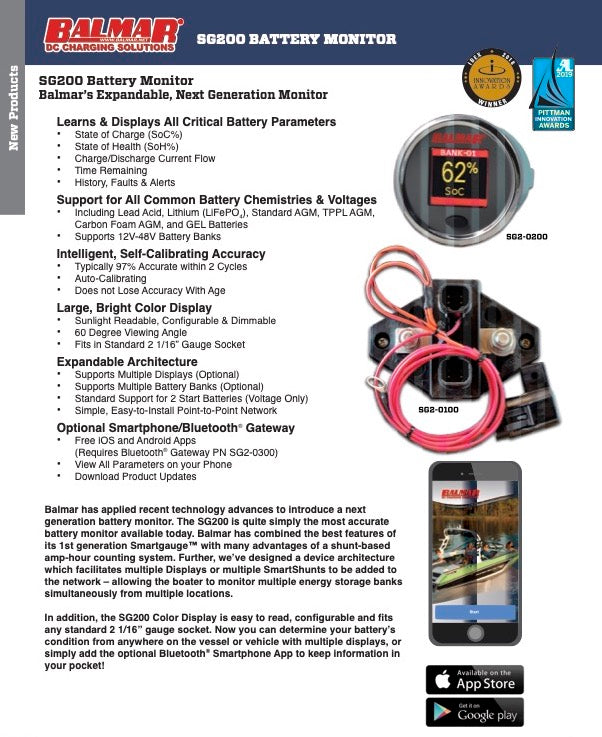

Learns and Displays all critical battery parameters including state of charge, state of health of the battery, charge/discharge current flow, time remaining, history and faults.

It supports all common battery chemistries and voltages including Lead Acid, Lighium (LifePO), Standard AGM, TPPL AGM, Carbon Foam AGM and GEL Batteries.

Intelligent Self Calibrating accuracy accurate within 2 cycles, auto calibrating, does not lose accuracy with age.

Has expandable architecture, supports multiple displays, supports multiple battery banks, stand support for 2 start batteries (voltage only), simple easy to install Point to Point Network.

Optional smartphone/Bluetooth gateway with Free IOS and Andriod Apps (requires Bluetooth gateway PN SG2-0300).  View all parameters on your phone and abilty to Download Product updates as they come available.

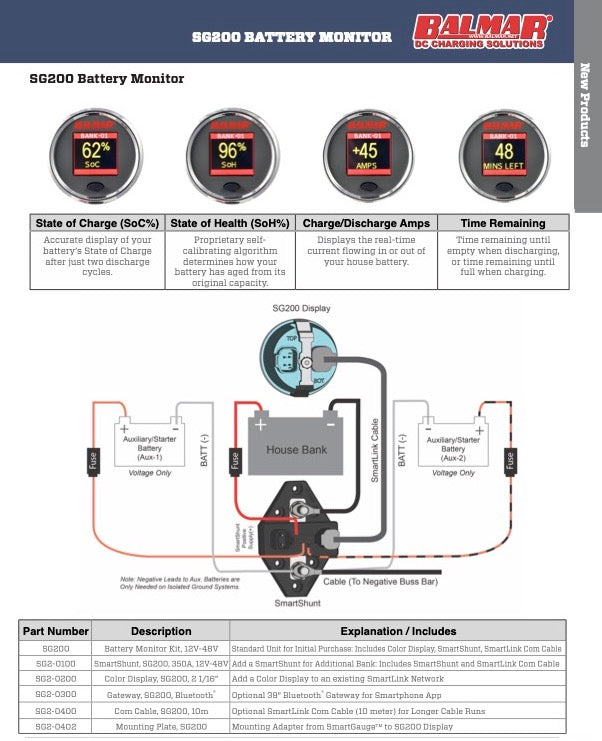

This package comprises the following:
  • SmartShunt, with 60” fused wire positive wire.
  • Color Display with mounting bracket and nut
  • 10m SmartLink Cable - one end is not fully assembled
  • SmartLink Deutsch-style connector kit, with a connector and wedgelock to complete the SmartLink cable
  • Bluetooth Gateway
  • Fuse for positive wire
  • Instruction manual
Not included:
  • Fuses for the Auxiliary voltage leads
  • Mounting fasteners for the SmartShunt
  • Battery cable to connect battery to SmartShunt
Optional Extras:
  • Additional displays can be installed to view data in more than one location (also requires additional network cable)
  • Additional shunts can be installed to view data from more battery banks (includes additional network cable)
  • Mounting plate
