Balmar SG-235 Battery Monitor System 12V-48 Volt Kit, NEMA 2000, BT Gateway, No Display use with iPhone or Android devices
Balmar SG-235 Battery Monitor System 12V-48 Volt Kit, NEMA 2000, BT Gateway, No Display use with iPhone or Android devices
Balmar SG-235 Battery Monitor System 12V-48 Volt Kit, N2K, BT Gateway, **No Display use with iphone or Andriod devices
Please note: Normally not stocked in store and ships directly from the manufacturer.

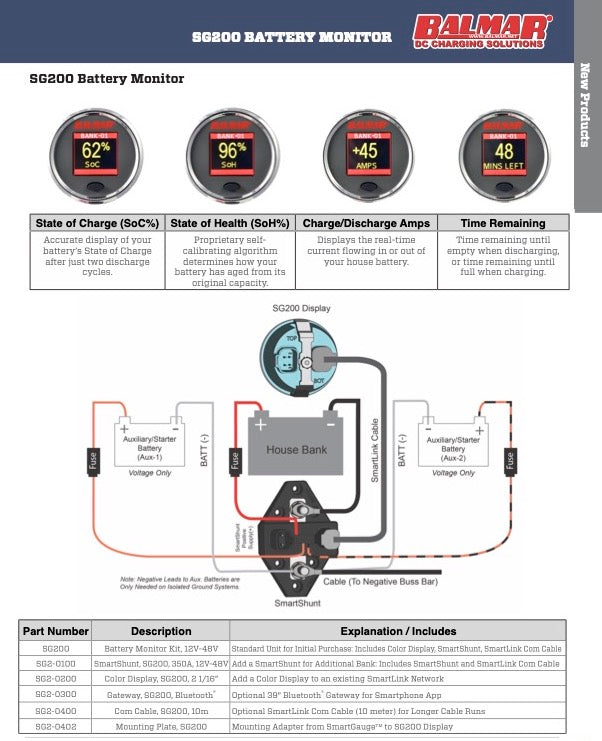

Learns and Displays all critical battery parameters including state of charge, state of health of the battery, charge/discharge current flow, time remaining, history and faults.
It supports all common battery chemistries and voltages including Lead Acid, Lighium (LifePO), Standard AGM, TPPL AGM, Carbon Foam AGM and GEL Batteries.
Intelligent Self Calibrating accuracy accurate within 2 cycles, auto calibrating, does not lose accuracy with age.

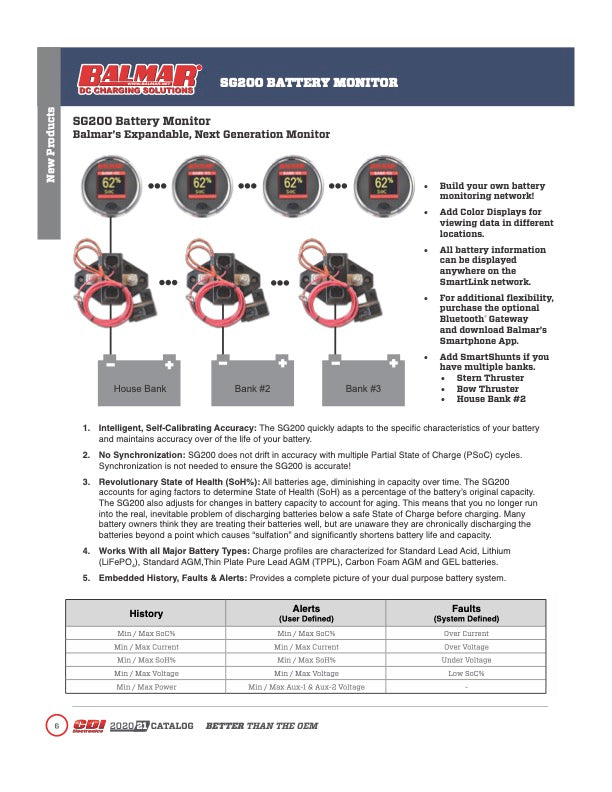

Has expandable architecture, supports multiple displays, supports multiple battery banks, stand support for 2 start batteries (voltage only), simple easy to install Point to Point Network.
Optional smartphone/Bluetooth gateway with Free IOS and Andriod Apps (requires Bluetooth gateway PN SG2-0300). View all parameters on your phone and abilty to Download Product updates as they come available.
This NMEA 2000 version can connect to an existing NEMA 2000 network to provide real-time data to the network including voltage, state of charge, state of health, time remaining, and current. Includes NMEA 2000 adapter.
- State of Charge (SoC%)
- State of Health (SoH%)
- Charge/Discharge Current Flow
- Time Remaining
- History, Faults & Alerts
- Lead Acid, Lithium (LiFePO4), Standard AGM, TPPL AGM, Carbon Foam AGM, and GEL Batteries
- Supports 12V-48V Battery Banks
- Typically 97% Accurate within 2 Cycles
- Auto-Calibrating
- Does not Lose Accuracy with Age
- Support Multiple Displays (Optional)
- Supports Multiple Battery Banks (Optional)
- Standard Support for 2 Start Batteries (Voltage Only)
- Simple, easy-to-install Point-to-Point Network
This package comprises the following:
- SmartShunt, with 60” fused wire positive wire.
- 10m SmartLink Cable - one end is not fully assembled
- SmartLink Deutsch-style connector kit, with a connector and wedgelock to complete the SmartLink cable
- Bluetooth Gateway
- Fuse for positive wire
- Instruction manual
- NMEA 2000 adaptor.
- Fuses for the Auxiliary voltage leads
- Mounting fasteners for the SmartShunt
- Battery cable to connect battery to SmartShunt
- Additional displays can be installed to view data in more than one location (also requires additional network cable)
- Additional shunts can be installed to view data from more battery banks (includes additional network cable)
- Mounting plate
